What Is Thunderbolt 5? Everything You Need to Know

You probably already have a bunch of USB-C cables lying around your desk, but Thunderbolt 5 is a different beast entirely. It uses that same familiar oval plug, but the technology under the hood is built for anyone pushing their hardware to the limit, think high-res monitors, lightning-fast external SSDs, and complex docking stations. If you’ve ever felt your laptop struggle when you plug in too many accessories at once, this is the fix.

The real story here is bandwidth. Thunderbolt 5 hits up to 80Gbps in both directions, and it can even stretch to 120Gbps when you're pushing a lot of pixels to high-end displays. It’s designed specifically for creators, video editors, and engineers who need their gear to move as fast as they do. Most people won't need this much power for checking emails, but for professional workstations, it changes the game.

What Makes Thunderbolt 5 Different?

The biggest shift here is pure bandwidth. Thunderbolt 5 effectively doubles the baseline performance of your USB-C port, giving it enough "room" to handle massive display setups, high-speed storage, and heavy-duty docking all at once without breaking a sweat.

Up to 80Gbps Bidirectional Bandwidth

Previous standards maxed out at 40Gbps, but Thunderbolt 5 pushes that to 80Gbps in both directions simultaneously. This is a game changer if you’re moving giant project folders. For example, a video editor can be rendering a 4K timeline to an external SSD while simultaneously pulling raw 8K footage from a server, all through a single Thunderbolt 5 dock. The extra overhead means you won’t see those annoying performance stutters when you’ve got several high speed accessories plugged in at the same time.

Up to 120Gbps With Bandwidth Boost

Thunderbolt 5 has a clever trick called Bandwidth Boost for when you’re pushing a lot of pixels. Instead of staying at a constant 80/80 split, it can dynamically shift its "lanes" to give you up to 120Gbps in one direction. This is not something that runs all the time; it kicks in specifically for display-heavy tasks. If your setup involves triple 4K monitors running at 144Hz or even dual 8K displays, Bandwidth Boost ensures your screens stay buttery smooth without stealing bandwidth from your other data-hungry devices.

Stronger Support for Displays and External Storage

Beyond raw speed, the way Thunderbolt 5 handles data is just more efficient. By supporting the latest DisplayPort 2.1 and PCIe Gen 4 standards, it bridges the gap between external peripherals and internal performance. This matters most in a professional workspace where you need your external SSDs to feel as fast as the drive inside your laptop. With Thunderbolt 5, your docking station becomes a true extension of your computer rather than just a place to plug in your mouse and keyboard.

What Can Thunderbolt 5 Be Used For?

Thunderbolt 5 is more than just a speed boost, it's about making a single USB-C cable do things that used to require a desktop's worth of wiring. While your average person might not need this much overhead for checking emails, it’s a total game changer for anyone managing a heavy duty workstation.

Connecting High-Resolution Monitors

Thunderbolt 5 handles the massive visual data of 2026 by supporting DisplayPort 2.1. It can drive three 4K monitors at 144Hz or dual 8K displays at 60Hz. For anyone spending their day at a desk, this means more pixels and smoother motion without a mess of specialized cables.

This makes Thunderbolt 5 useful for:

• 8K Video Editing: Spread timelines across multiple screens with zero lag.
• High-End Design: Power 6K or 8K reference monitors for perfect color work.
• Pro Office Setups: Run a clean, three-screen layout from one laptop port.
• Gaming & Streaming: Support ultra-high refresh rates up to 540Hz.
• Massive Workspaces: Drive ultra-wide displays that used to need two cables.

For those who live in their workspace, the extra bandwidth keeps your desk clean and performance high. You’re not just saving a few wires; you're ensuring screen space doesn't come at the cost of system stability.

Using Thunderbolt 5 Docking Stations

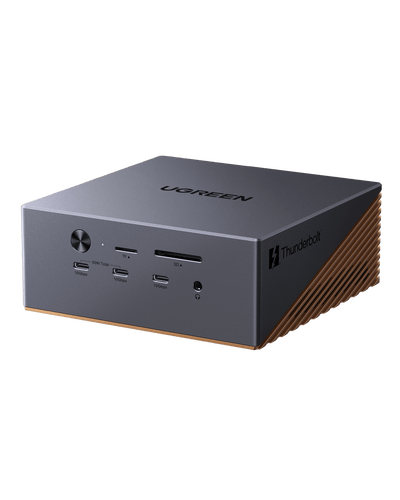

The latest Thunderbolt 5 docks, like the CalDigit TS5 Plus or Ugreen Maxidok 17-in-1, turn your laptop into a full-scale production hub. With one cable, you can pull in 2.5GbE or even 10GbE networking, connect multiple high speed USB ports, and still have enough "lanes" left to charge your machine at up to 140W or 240W. It eliminates that frustrating trade-off where plugging in a second monitor would suddenly slow down your external drive.

{{UGPRODUCT}}

Fast External SSDs and Large File Transfers

Thanks to PCIe Gen 4 support, external storage is finally catching up to the speed of your laptop's internal drive. New 2026 portables like the OWC Envoy Ultra are hitting real world speeds of over 6,000MB/s, roughly double what you’d get on Thunderbolt 4. If you're working with 100GB+ project files or running virtual machines directly off an external drive, the wait times basically vanish. It’s the difference between a coffee break and getting things done right now.

Powering Professional Workflows

Thunderbolt 5 shines when one port has to juggle several demanding devices. You might be pulling 8K footage from a camera while backing up to a fast SSD and monitoring on a 6K screen, all while charging your laptop at up to 240W. By doubling PCIe throughput to 64Gbps, it finally removes the bottlenecks that used to slow down external hardware.

It supports professional workflows such as:

• 8K Video Production: Edit raw timelines directly from external drives without dropped frames.
• Photography & RAW Processing: Offload giant shoots in minutes rather than hours.
• 3D Design & Rendering: Run external GPUs with nearly double the performance of older standards.
• High-End Audio: Connect low-latency interfaces alongside massive sample libraries.
• Engineering & Big Data: Handle CAD and simulation data that used to require a desktop.

For regular office work, this level of power is likely overkill. But for those pushing heavy data and pixels every day, the jump in speed and stability is something you’ll feel immediately.

Who Needs Thunderbolt 5?

If you’ve ever felt like your setup was lagging because you had too many things plugged into one hub, Thunderbolt 5 is the answer. It’s designed for anyone who needs more "lanes" on their digital highway. While a single cable is great for keeping your desk clean, the real benefit is being able to run high resolution displays and lightning-fast storage simultaneously without one stealing speed from the other.

Creators and Video Editors

This is the group that’ll feel the biggest shift. Between giant raw video files and the need for pixel-perfect monitors, creators usually push Thunderbolt 4 to its absolute limit. Thunderbolt 5 removes that ceiling, making external workflows feel as snappy as if you were working off your computer's internal drive.

It’s a must-have if you work with:

• High-Res Footage: Smoothly edit 4K, 6K, or 8K timelines.
• Massive Libraries: Quickly scrub through terabytes of raw photos or video.
• External SSDs: Use external drives as "scratch disks" with zero lag.
• Pro Monitors: Drive color-accurate 5K or 8K reference displays.
• Production Gear: Connect high-end capture cards and RAID arrays at once.

Designers, Engineers, and Power Users

For designers and engineers, it’s not just about speed, it's about reliability. Whether you’re rendering 3D models or running complex simulations, you need a connection that won't flake out when the data gets heavy. Thunderbolt 5 handles these massive project files while keeping your drawing tablet, ultra-wide monitor, and high speed storage all running at peak performance. It turns a laptop into a legitimate workstation that can actually keep up with a high-end desktop.

Laptop Users With Docking Setups

If you’re the type who unplugs for a meeting and wants to return to a full desktop experience with one click, this is for you. A Thunderbolt 5 dock handles your displays, Ethernet, drives, and up to 240W of power through one cable. It’s the ultimate "set it and forget it" fix for anyone tired of messing with five different wires.

This is useful for people who often move between:

• Home and office: Keep a pro setup at both spots and transition in seconds.
• Mobile and desktop: Jump from a couch-bound laptop to a full workstation.
• Travel and home base: Connect a portable rig to a massive monitor array instantly.
• Different gear: Quickly swap between monitors and high speed accessories.

For these users, Thunderbolt 5 goes beyond raw speed. It lets you reclaim your desk and makes your entire workflow feel seamless. Also, you get a cleaner workspace and way faster transitions.

Everyday Users May Not Need It Yet

If your daily routine is mostly emails, Netflix, and the occasional Zoom call, you can probably stick with your current gear for now. Thunderbolt 4 and even standard USB-C are plenty fast for basic tasks. You won't see a massive difference in how fast a Word doc saves or how a YouTube video streams. Thunderbolt 5 is specialized tech, unless you’re feeling the "bottleneck" of your current setup, it's more of a future-proofing move than a daily necessity.

What Should You Check Before Using Thunderbolt 5?

Before you go out and buy a bunch of new gear, you need to make sure your entire setup can actually talk to each other. A Thunderbolt 5 dock or cable won't magically give you 120Gbps speeds if your laptop or external drive is still stuck in 2022. It’s like putting high-octane fuel in a sedan, it’ll run fine, but you aren't going to win any races.

Your Computer Must Support Thunderbolt 5

The oval USB-C plug is everywhere now, but that doesn't mean every port is created equal. Some only handle charging, while others are built for older Thunderbolt 4 or standard USB4 speeds. In 2026, most M4/M5 Pro and Max Macs and high end Windows workstations (like the latest Razer Blade 18 or MSI Titan) come with native Thunderbolt 5 support. Check your system specs or look for that tiny lightning bolt with a "5" next to it on the chassis.

Your Cable Must Support Thunderbolt 5 Speeds

Not all USB-C cables are built for 80Gbps. If you grab a random charging wire, your monitors might not turn on, and data will crawl. To get the performance you’re paying for, the cable has to be as fast as the port.

For the best results, use a cable that clearly supports:

• Thunderbolt 5: Check for the "5" branding on the plug.
• 80Gbps Bandwidth: The baseline for high-speed data.
• 120Gbps Boost: Necessary for triple 4K or dual 8K monitors.
• 240W Power: Required to fast charge beefy laptops.

Using the wrong cable is the quickest way to end up with flickering screens or a laptop that loses battery while plugged in. For anything over 3 feet, stick to "active" cables to keep the signal strong.

Your Dock or Accessory Must Match Your Needs

The best dock delivers what you use daily, even if it has fewer ports. Here’s the key: if you’re a photographer, you want a fast SD 4.0 slot, but an editor needs multiple downstream Thunderbolt ports for RAID arrays. Picking the right hub now also saves you from buying extra adapters later.

Before buying, check:

• Display Outputs: Ensure it supports your specific resolution and refresh rate.
• Port Selection: Look for enough USB-A for legacy gear and 10GbE for fast networking.
• Power Delivery: Make sure it provides enough juice to keep your laptop charged under load.
• Storage Support: Check for high-speed NVMe slots if you plan to edit from the dock.

Essentially, the right accessory is the one that fits your desk and your devices. It’s better to have four ports you actually use than twelve that just sit there.

Older Devices May Work, But at Lower Speeds

One of the best things about Thunderbolt 5 is that it’s backward compatible. You don't have to throw away your old Thunderbolt 3 or 4 SSDs; they’ll plug in and work just fine. Just don't expect them to suddenly get faster. A Thunderbolt 4 drive plugged into a Thunderbolt 5 port will still top out at its original 40Gbps. It’s a nice way to transition your gear over time without a massive upfront cost, but to get the full 2026 performance, your whole chain needs to be on the same page.

Conclusion

Thunderbolt 5 effectively doubles the performance of your USB-C port, pushing 80Gbps bidirectional speeds and a 120Gbps Bandwidth Boost for high end displays. It’s built for a world of triple 4K monitors, ultra-fast SSDs, and 240W charging, ensuring your external gear finally feels as fast as your internal hardware. If you’re editing 8K video or managing complex engineering data, the jump is a no-brainer. But for basic web browsing or a single monitor setup, your current gear is still plenty. Bottom line: it’s specialized tech for power users who want a single-cable desk without any bottlenecks.
